Overview#

micipsa_navigation is a ROS 2 package that configures and launches the Nav2 stack to provide autonomous, collision-free navigation for Micipsa. It manages the full lifecycle of Nav2's stack.

In addition to standard navigation components, this package also launches a custom dock pose detection node (dock_pose.py) used to support docking behavior. This node uses poses of detected AprilTags in the robot’s environment, and filters these detections to identify a specific target frame defined by a dock_frame parameter, when the matching tag is detected, the node publishes its pose as a docking target.

Architecture#

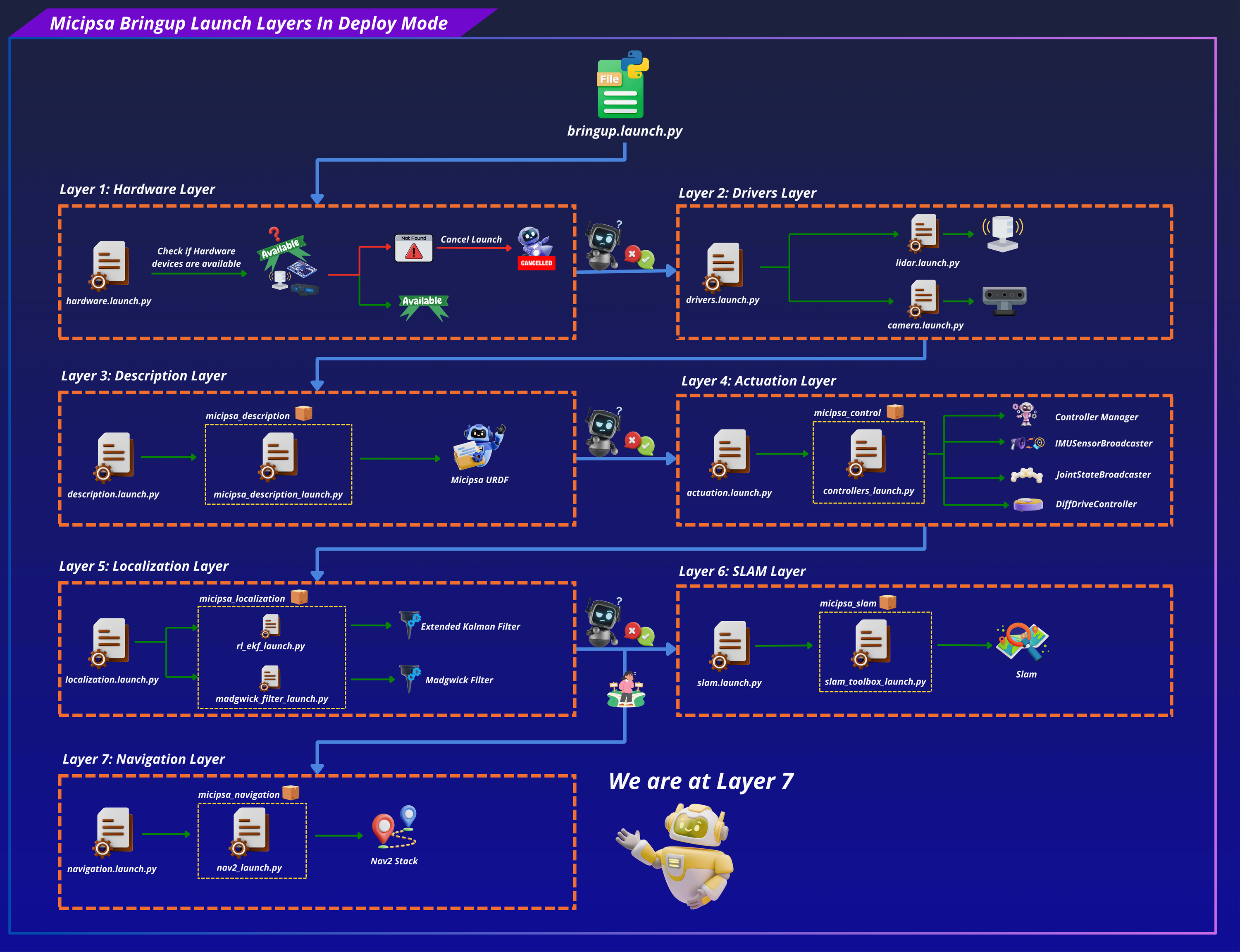

micipsa_navigation sits at the top of the Micipsa autonomy stack. All underlying subsystems and layers must be running and healthy before this package can be activated. The only exception is the SLAM layer, if a map is already available, it can be loaded and the robot can localize against it using AMCL instead of running SLAM.

ROS 2 Interface#

Published Topics#

TF broadcast#

Subscribed Topics#

Actions#

TF Subscriptions#

Installation#

Important

Micipsa can be run in two ways: natively on a ROS 2 host, or via Docker using pre-built containerized images. Choose your approach before proceeding:

Native build the package directly in a ROS 2 workspace. Follow requirements and the Native Install steps below.
Docker use the Micipsa container stack, no manual workspace setup required. skip requirements section and follow Docker section.

Requirements#

First, make sure that the following packages are available in your workspace:

micipsa_common
micipsa_msgs
micipsa_description (not required for building, needed in usage section)
micipsa_control (not required for building, needed in usage section)
micipsa_localization (not required for building, needed in usage section)
micipsa_maps (not required for building, needed in usage section)

If deploy only:

micipsa_core (not required for building, needed in usage section)
micipsa_hardware (not required for building, needed in usage section)

If simulation only:

micipsa_simulation (not required for building, needed in usage section)

Native Install#

Source the ROS 2 installation:

source /opt/ros/jazzy/setup.bash

Install ROS2 dependencies:

cd ~/ros2_ws
rosdep update
rosdep install --from-paths src --ignore-src -r -y

Build the packages:

colcon build

Source the workspace:

source install/setup.bash

Tip

Add source /opt/ros/jazzy/setup.bash and source ~/ros2_ws/install/setup.bash to your ~/.bashrc to avoid repeating these steps in every new terminal.

Docker#

Tip

Reading Micipsa Docker documentation (architecture, dockerfile, docker compose,...) is strongly recommended, it covers how the Dockerfiles are structured, how images are built, how containers are orchestrated, and much more.

To build and run Micipsa Navigation Docker image, follow Micipsa Dockerfile README Build Section.

Configuration#

Usage#

Important

If you want to enable docking capabilities in addition to autonomous navigation, start the dock_pose_launch.py launch file. Make sure to adjust its parameters according to the deployment mode.

Simulation#

Launch the full Micipsa simulation stack in order, each in a separate terminal:

ros2 launch micipsa_description micipsa_description_launch.py

ros2 launch micipsa_simulation gazebo_launch.py

ros2 launch micipsa_control controllers_launch.py

ros2 launch micipsa_control twist_mux_launch.py

ros2 launch micipsa_localization rl_ekf_launch.py

ros2 launch micipsa_navigation nav2_launch.py

To use a custom Nav2 config file:

ros2 launch micipsa_navigation nav2_launch.py nav2_config_file:=my_custom_nav2.yaml

Deploy#

ros2 launch micipsa_description micipsa_description_launch.py use_sim_time:=false deploy_mode:=true

ros2 launch micipsa_control controllers_launch.py use_sim_time:=false deploy_mode:=true

ros2 launch micipsa_control twist_mux_launch.py use_sim_time:=false

ros2 launch micipsa_localization rl_ekf_launch.py use_sim_time:=false

ros2 launch micipsa_navigation nav2_launch.py use_sim_time:=false

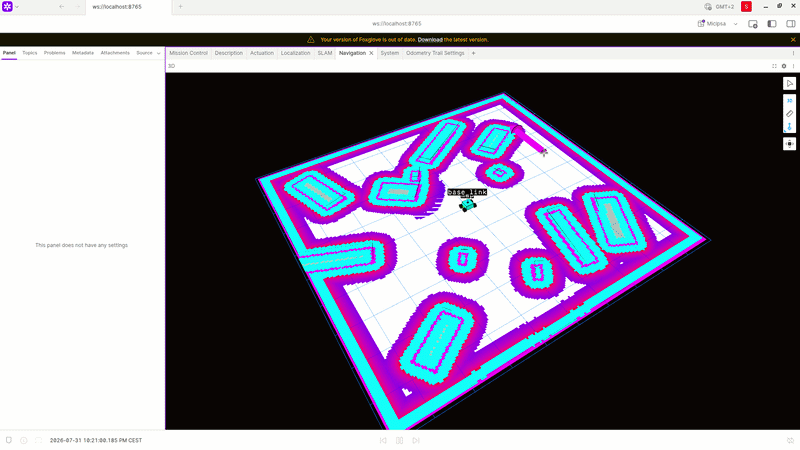

Validation#

Rviz#

rviz2

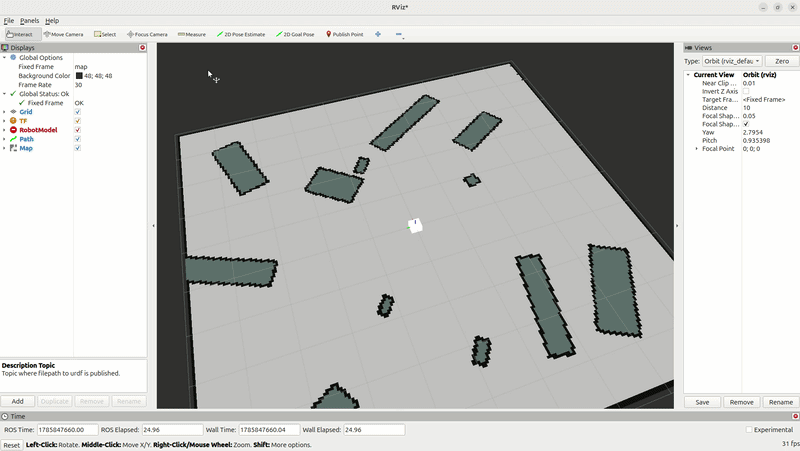

In RViz Interface:

Set Fixed Frame to map
Add a Map display → topic /map
Add a Path display → topic /plan
Use the 2D Pose Estimate tool to set the robot's initial pose on the map before sending a goal
Use the 2D Goal Pose tool to send a navigation goal and observe the planned path and robot motion

Additional Information#

Dependencies#

Build Dependencies#

These dependencies are required when building the package.

Package	Role
`ament_cmake`	Build system
`ament_cmake_python`	Python package installation support within a CMake package
`micipsa_msgs`	Custom message/service definitions used at both build and run time

Runtime Dependencies#

These dependencies are not required to build the package but are required when running it.

Package	Role
`nav2_map_server`	Serves the static occupancy grid map.
`nav2_amcl`	Performs localization using Adaptive Monte Carlo Localization (AMCL).
`nav2_planner`	Computes global paths to navigation goals.
`nav2_controller`	Computes local velocity commands to follow planned paths.
`nav2_bt_navigator`	Executes navigation behavior trees and coordinates navigation actions.
`nav2_smoother`	Smooths planned paths before execution.
`nav2_behaviors`	Provides recovery and utility behaviors (e.g., spin, backup, wait).
`nav2_velocity_smoother`	Filters and smooths outgoing velocity commands.
`nav2_collision_monitor`	Monitors sensor data and stops or slows the robot to avoid collisions.
`nav2_lifecycle_manager`	Manages the lifecycle state transitions of Nav2 nodes.
`nav2_navfn_planner`	Provides the NavFn global planner plugin used by `nav2_planner` to generate global paths.
`nav2_mppi_controller`	Provides the MPPI local controller plugin used by `nav2_controller` for trajectory optimization and path following.
`nav2_costmap_2d`	Provides the 2D costmap framework and plugins used for obstacle representation and environment modeling.
`opennav_docking`	Provides autonomous docking and undocking services.

Test Dependencies#

Used only when running the package test suite.

Package	Role
`ament_lint_auto` / `ament_lint_common`	Code style and copyright linting
`ament_cmake_pytest`	Python test runner for colcon
`launch_testing_ament_cmake`	Launch test integration for colcon
`launch_testing`	Framework for launch-based integration tests
`launch` / `launch_ros`	Launch description construction in tests
`ament_cmake_ros`	Provides `run_test_isolated.py` for isolated launch tests

Micipsa Packages Dependencies#

The launch file and integration test require the following packages to be built and available at runtime:

Package	Role
`micipsa_description`	Must be running so that the static TF tree (`base_footprint → laser_frame`) is published
`micipsa_control`	Must be running so that the robot's actuators and state interfaces are active
`micipsa_localization`	Must be running so that `/odometry/filtered` and `odom → base_footprint` TF are published
`micipsa_slam`	Must be running so that `/map` and the `map → odom` TF are published
`micipsa_simulation` or `micipsa_hardware, micipsa_core`	Must be running so that `/scan` is published
`micipsa_maps`	Must be available as generated maps are stored there
`micipsa_common`	Provides `resolve_config_path` and `warn` launch utilities
`micipsa_msgs`	Micipsa custom messages

Testing#

Note

All tests run headless and do not require simulation or physical hardware. They can be executed reliably in CI environments.

Launch Integration Tests#

test_navigation_integration_launch.py validates the full Nav2 pipeline by launching:

micipsa_description robot model and static TF
micipsa_simulation Gazebo (headless)
micipsa_control ros2_control controllers
micipsa_localization robot_localization EKF
micipsa_slam SLAM Toolbox
micipsa_navigation Nav2 stack

Success criteria:

#	Criterion
1	Nav2 action server `/navigate_to_pose` becomes available within 120 s
2	`/global_costmap/costmap` topic becomes available within 120 s
3	`/local_costmap/costmap` topic becomes available within 120 s
4	A valid `nav_msgs/OccupancyGrid` message is received on `/global_costmap/costmap`
5	A valid `nav_msgs/OccupancyGrid` message is received on `/local_costmap/costmap`
6	`global_costmap.header.frame_id == "map"`
7	`local_costmap.header.frame_id` is non-empty
8	Both costmap `width` and `height` metadata fields are non-negative

A failure indicates one of: Nav2 lifecycle nodes failed to activate, a required TF transform is missing or delayed, SLAM or localization did not produce the expected outputs, a costmap plugin failed to initialise, or the action server was not created.

Running Tests#

Run only the integration tests:

colcon build --packages-select micipsa_navigation
colcon test --packages-select micipsa_navigation --ctest-args -L launch -V
colcon test-result --verbose

Run all tests including linting:

colcon build --packages-select micipsa_navigation
colcon test --packages-select micipsa_navigation
colcon test-result --verbose

Clean test results between runs:

colcon test-result --delete-yes
